As with all racing safety equipment, Head and Neck Restraint fitment is critically important, and the Head and Neck Restraint user can increase the risk of injury if they are not fitted properly.  A Frontal Head Restraint (FHR) restrains the driver’s head relative to the torso during a frontal impact, thereby reducing the loads to the head and neck.

There are different types of FHR systems approved, one of them being the HANS® Device.  Please refer to the general Head and Neck Restraint sizing chart below for proper HANS® Device system fitment.

This system sizing chart is for both ADULT and YOUTH devices.  If you need a Head and Neck Restraint system outside of this chart range, please contact our Technical Sales staff for other brand options that may be available for you.

Properly Measuring Fitment for a Simpson® HANS® Device Head and Neck Restraint System

STEP ONE - DETERMINE PROPER DEVICE/SYSTEM SIZE

Locate a cloth tape measure and record the following body measurement:

  • A - Neck Circumference  - Measure CIRCUMFERENCE around the fullest part of the neck line, keeping the tape semi-taunt.

Once this measurement is  completed, please refer to the sizing chart below to find the Simpson® HANS® Device Head and Neck Restraint System that best fits your measurements.

Remember, if you DO NOT find a Head and Neck Restraint System that suits you, please contact one of our Technical Sales Specialist and they will work with you to find a solution for you.

Simpson® HANS® Device - Head & Neck Restraint Sizing and Fitment Chart***
 Factory Device Size
Super-Small
Youth
Small
Medium
Large
 A - Neck Circumference (in.)
11" to 13.5"
12.5" to 14.5"
12.5" to 15.5"
14.5" to 17.5"
16.5" to 20.5"


Simpson® HANS® Device System Sizing Chart Note: Additional sizes may also be available. Please contact our Technical Sales staff for more information.

STEP TWO - DETERMINE PROPER DEVICE/SYSTEM ANGLE

HANS® devices exist not only in varied sizes (Small thru Large) but also with different angles between the yoke (part of the HANS® in contact with the driver’s shoulders and chest) and collar (part of the HANS® located behind the driver’s helmet). Normally HANS® devices exist in a range of angles between 10° to 30°.  Also note that there is also a version that is an adjustable unit that will go to 40° is needed for extremely rare racing applications.

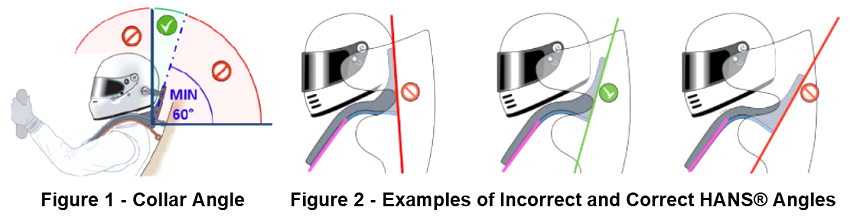

When a driver is seated in the racing position with the harnesses tightened, the HANS® collar angle must be between 60° and 90° from the horizontal (see Figure 1 and Figure 2 below).

The HANS® device may lightly contact helmet, but if the HANS® collar angle is higher than 90° from the horizontal (the top of the collar is pointing forward instead of pointing backwards), a more upright device may be required (for example from a 30° HANS® to a 20° HANS®).

The HANS® device may lightly contact the seat or head rest, but if the HANS® pushes the head forward uncomfortably, the HANS® collar top goes backwards in an angle from the horizontal lower than 60°, a HANS® model with a higher angle may be required (for example from a 20° HANS® to a 30° HANS®).

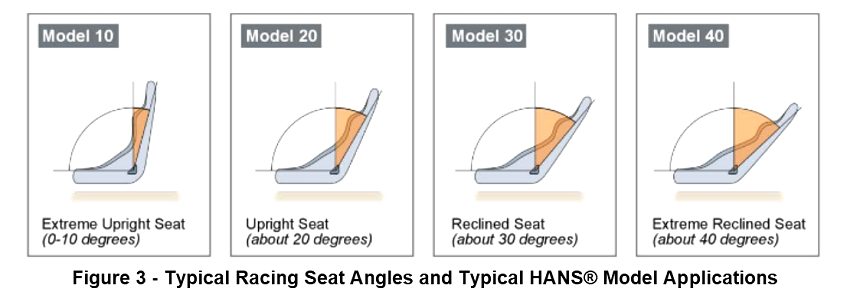

The Figure 3 drawing below shows an indication of models angles according to typical seat sitting position.

Simpson® HANS® Device - Model Applications for Head & Neck Restraint Systems***
Seat Angle
Typical Racing Application
Applicable HANS® Models

10 Degree

Sprint Cars - Micro-Sprints - East Coast Modifieds
Professional Model 10
20 Degree
NASCAR® - Asphalt Late-Models - Dirt Late-Models - Street Stocks - Quarter Midgets - Legends - IMCA/UMP/Wissota Modifieds - Full-Bodied Drag Cars and Dragsters - Sedan Sportscars - Drag Boats
HANS III - HANS III Youth - Professional Model 20 - Professional Super Small - Pro Ultra - Pro Ultra Lite 20

30 Degree

Open Wheel/Road Race Cars including Formula Ford®, Formula Mazda®, Barber Dodge® and Infiniti® Pro
Professional Model 30 - Pro Ultra-Lite 30

Multiple

All Types of Race Cars and Various Seat Configurations
 HANS 'Adjustable' Model - Allows Adjustment from 10 to 40 Degrees in 5 Degree Steps - Available in Medium Only


IMPORTANT FITMENT NOTE:  On some rare occasions, drivers with an extremely narrow chest or youths feeling discomfort using a Professional Model 10 may need to move to a 20 Degree device.  And for those drivers with an extremely large chest who can’t get the device angle correct, may need to use a 30 Degree device.  If either of these are the case, please contact the factory technical department for their recommendation before using any HANS® system.

TECHNICAL CREDIT AND ACKNOWLEDGEMENT: The above HANS®, helmet and seat technical information and illustrations were compiled using excerpts from the Federal Internationale De L'Automobile (FIA) 'Guide and Installation Specifications for HANS® Devices in Racing Competition' document published in June 2017.  To review this full PDF document click here or visit the FIA website Safety Section at www.fia.com/safety-equipment (both links open new browser window).
